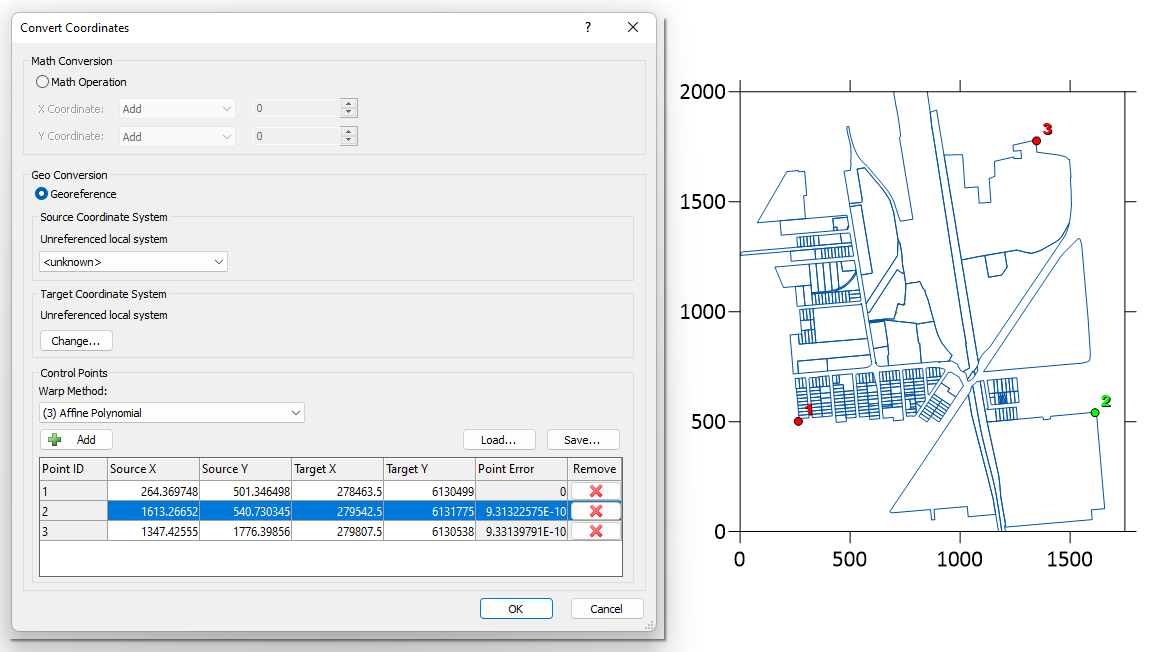

Reposition or georeference any vector base layer by assigning new coordinates to it. Use a simple math operation (add, subtract, multiply, divide or mirror) or georeference it using three or more known control points.

This allows you to:

• Convert the coordinates from an unknown local system to a referenced system, such as UTM or lat/lon.
• Convert or georeference the coordinates of EMF or WMF files.
• Shift a base layer in any direction to match other layers. For example, shift a layer in the Y direction by 50 and the X direction by 10.
• Assign real world coordinates to base layers if they import in page units.
• Convert raw data points (from data files imported as Base from Data layers) to new coordinates. Once converted, the converted data can be saved and gridded.

Edit a grid from the plot window and when the grid opens in the Grid Editor, any post or base layers in the map are also displayed in the Grid Editor. This allows you to easily edit the grid relative to imagery, control points, polygons or polylines, or other objects in a background map or overlay.

For example, edit a grid and show the coastline and land use data in the Grid Editor. Or show buildings, streams or field boundaries to help you define and identify the edits needed to the grid file.

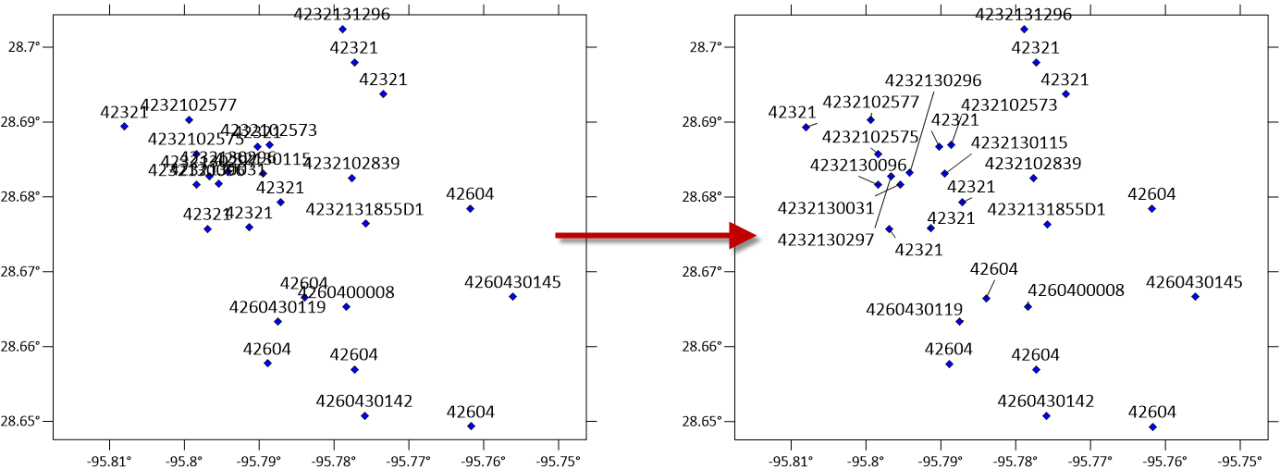

Reposition labels on post, base and drillhole layers so that they do not overlap. This allows you to:

• Easily and automatically avoid colliding labels for densely spaced points
• Display borehole labels on a drillhole layer and space the labels out so they don’t overlap
• Create post or base maps of wells, labeled with well names or pumping rates, and view the labels clearly.

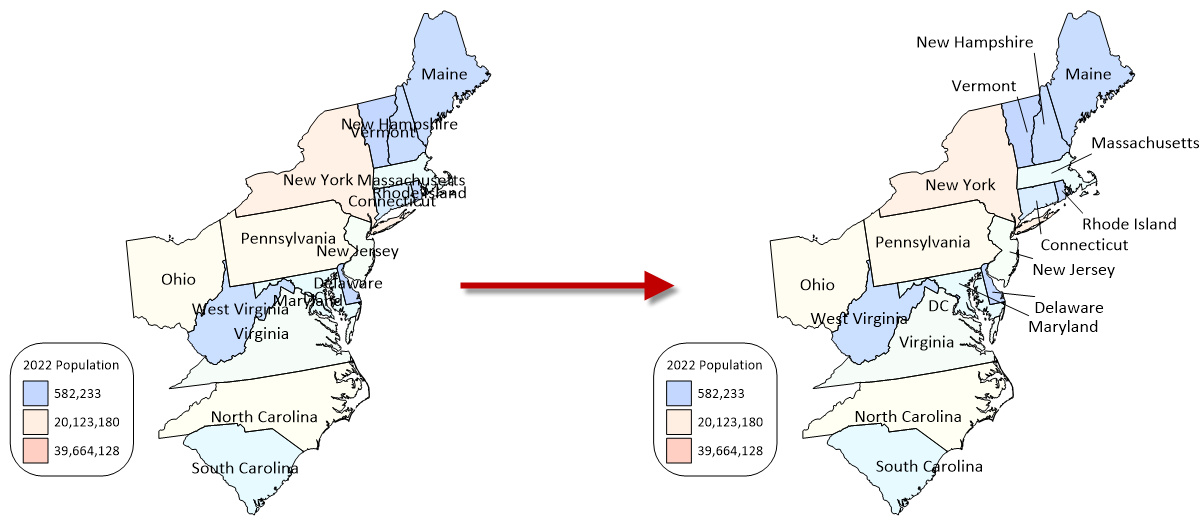

Base and drillhole layers now have leader lines connecting labels back to their respective objects! Edit label positions so the labels can be read clearly, and then know exactly which object the label belongs to.
