Best Practices for Gridding Geophysical Survey Sections

Gridding algorithms have evolved significantly since the early days of geomodelling, yet selecting the appropriate algorithm and parameters for your specific data remains challenging. In recent posts, we’ve examined best practices for gridding concentration data and vertical well data. In this installment, we turn our attention to gridding geophysical slice data.

Geophysical surveys are commonly used in environmental, engineering, construction, and water resource projects and are essential for understanding subsurface conditions. They allow you to investigate the characteristics of subsurface geology or other features, such as bedrock topography, fracture and fault zones, ore and mineral deposits, lithology types, and even cavities.

Geophysical Survey Types

No single geophysical survey method can examine the subsurface at all sites under any situation. The choice of geophysical methods employed will vary depending on the specific needs, circumstances, and site conditions. The technologies most commonly used when mapping and monitoring groundwater, mineral deposits, and environmental change include ground penetrating radar (GPR), electrical resistivity, and seismic.

The depth of exploration for these methods varies from a few inches to hundreds of feet.  The most common geophysical survey methods and what they are typically used for include:

Electrical Resistivity Tomography (ERT) survey

  • ERT measures resistivity against depth to create 2D profiles or slices.
  • ERT is typically used for mapping and monitoring of groundwater, mineral deposits, and environmental change.
  • ERT measurements can typically investigate depths of 0–200 meters (m).

Ground Penetrating Radar (GPR)

  • GPR is a geophysical method that operates by transmitting electromagnetic waves from an antenna and reflects off layers and objects hidden in the ground. These reflections are collected as data which generates a picture of the subsurface.
  • GPR can penetrate different depths depending on the type of material being surveyed and the application:
    • Soil and rock – GPR can penetrate less than 10 meters.
    • Concrete – GPR can penetrate concrete up to 24 inches for scanning purposes and can even detect rebar in the concrete.
    • Other materials – GPR can penetrate up to 100 feet in low conductivity materials like dry sand or granite. It can also penetrate hundreds of meters in highly resistive materials like ice.

Seismic Survey

  • Seismics is a method that utilizes a vibration source to measure propagation of elastic waves. The results will show the mechanical properties of the ground. Common applications are soil stability, rock quality and depth to bedrock.
  • Seismic survey is a low-impact method that enables geoscientists to interpret geological features up to 50 kilometers beneath the earth’s surface.

Challenges of Gridding 2D Geophysical Data

A skilled geoscientist generally has a clear picture of the subsurface landscape before their survey results are modeled. The objective of data interpolation is to use collected geophysical data and gridding algorithms to accurately represent and enhance this understanding. When working with 2D geophysical data, three key characteristics must be considered:

Noisy data

Noise in geophysical survey data refers to any unwanted or irrelevant signals that interfere with data interpretation. It can originate from various sources, such as the instruments used, soil conditions, or external disturbances.

Inconsistent spacing in data collection

Geophysical survey data, regardless of the survey method used, tends to have high density of data in the vertical direction with lower density data spaced along the acquisition transect.

Accounting for regions where data doesn’t exist

When gridding geophysical data, mapping and modeling software typically populate the entire X and Y extent of the raw data with grid nodes. This approach can result in filling areas where no data was collected, such as above the ground surface or along the edges in ERT surveys.

Understanding these challenges helps identify which gridding parameters to focus on when creating your 2D profile from geophysical data.

A post map of a the data collected along a typical geophysical survey line

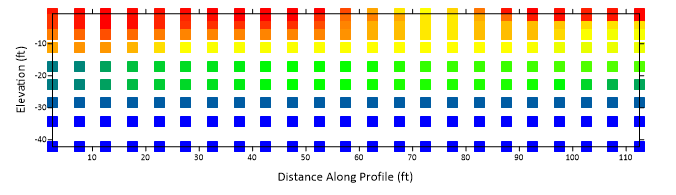

Surfer model illustrating the horizontal and vertical data distribution for an example geophysical dataset

Gridding Best Practices for Geophysical Survey Lines

1. Select the right gridding algorithm

To optimize data interpolation, it’s crucial to select the appropriate gridding method or algorithm. Here are some useful tips:

  • If the data is relatively smooth between sample points or survey lines, Minimum Curvature gridding is recommended. This is the most commonly used gridding method in geophysics, and most mapping and modeling software rely on it.
  • Kriging is ideal for random data, non-parallel line data, or orthogonal line data. It’s best used when data is variable between sample locations, statistical in nature, or poorly sampled or clustered. Kriging is particularly well-suited for geochemical or other geological sample-based data but is rarely used for geophysical data, which typically follows a naturally smooth surface.

When gridding 2D geophysical slice data, minimum curvature gridding is generally the preferred method.

2. Adjust the grid resolution

Geophysical survey data often has varying density in the vertical direction compared to the horizontal direction, due to differences in acquisition techniques. Typically, data sample locations along survey lines are spaced about a foot apart, while vertical samples tend to be much more densely packed.

When gridding 2D slice data, it’s important to adjust the grid resolution to account for the dense vertical sampling and the sparser spacing along the survey line. Specifically, we recommend increasing the grid resolution to be equal to or less than the survey spacing in the X direction.  Increasing the resolution helps capture as much detail as possible in the finished map.

3. Exclude Regions that Don’t Contain Data

After the gridding is complete, the 2D survey profile or cross section is typically displayed as a contour map. Many data interpolation algorithms, including minimum curvature, do not take the varying surface elevation into account and interpolate data into these regions. This means that the regions that are not supposed to have data, like the area above the ground surface on a 2D profile, need to be clipped or removed.

In Surfer, a null or NoData value can be assigned to areas outside the data limits using the Alpha Shape functionality.  This ensures there will only be data displayed in areas where there should be and the interpolation is restricted to areas that contain data.

Geophysical survey map showing the location of each survey line across the site

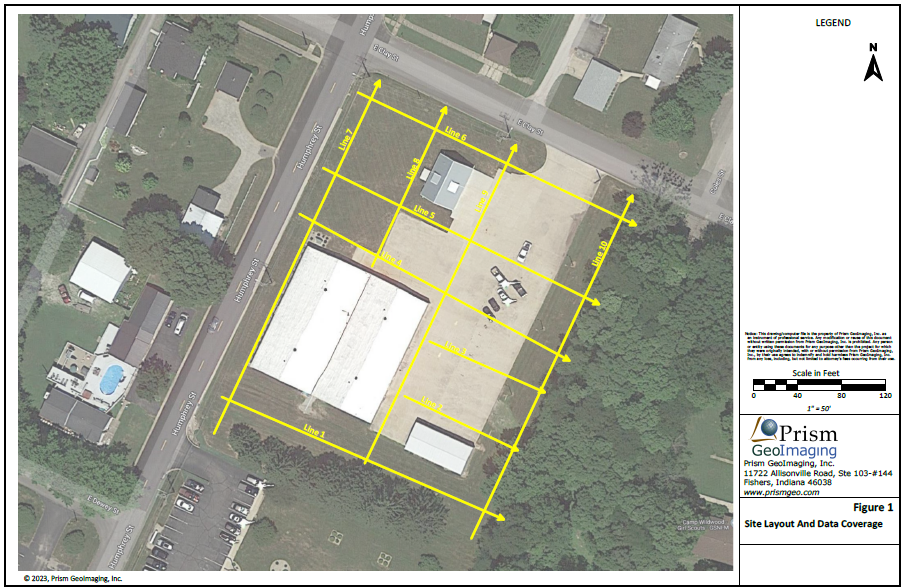

Site map with geophysical survey line locations

Surfer color relief map of a geophysical survey line.

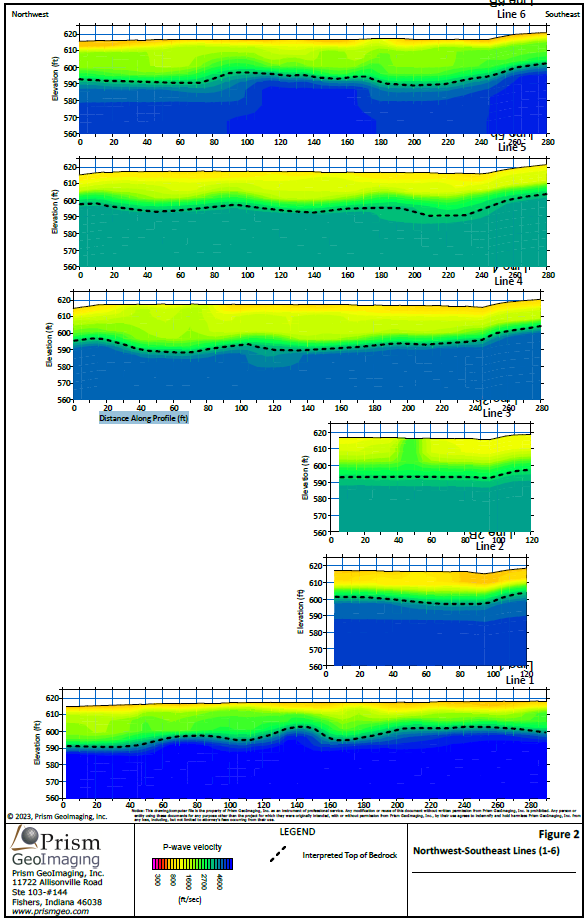

Geophysical survey gridding results illustrated using a color relief map

Gridding geophysical survey line data comes with some unique challenges, but a good understanding of your data and use of the right tools and settings can ensure accurate results. Use these three best practices the next time you’re modeling geophysical sections:

  1. Use the Minimum Curvature gridding method.
  2. Increase the grid resolution in the X (distance) direction to capture the finer details of your data.
  3. Assign NoData using the Alpha Shape functionality to remove extrapolated results in regions where data doesn’t exist.
